Product Details

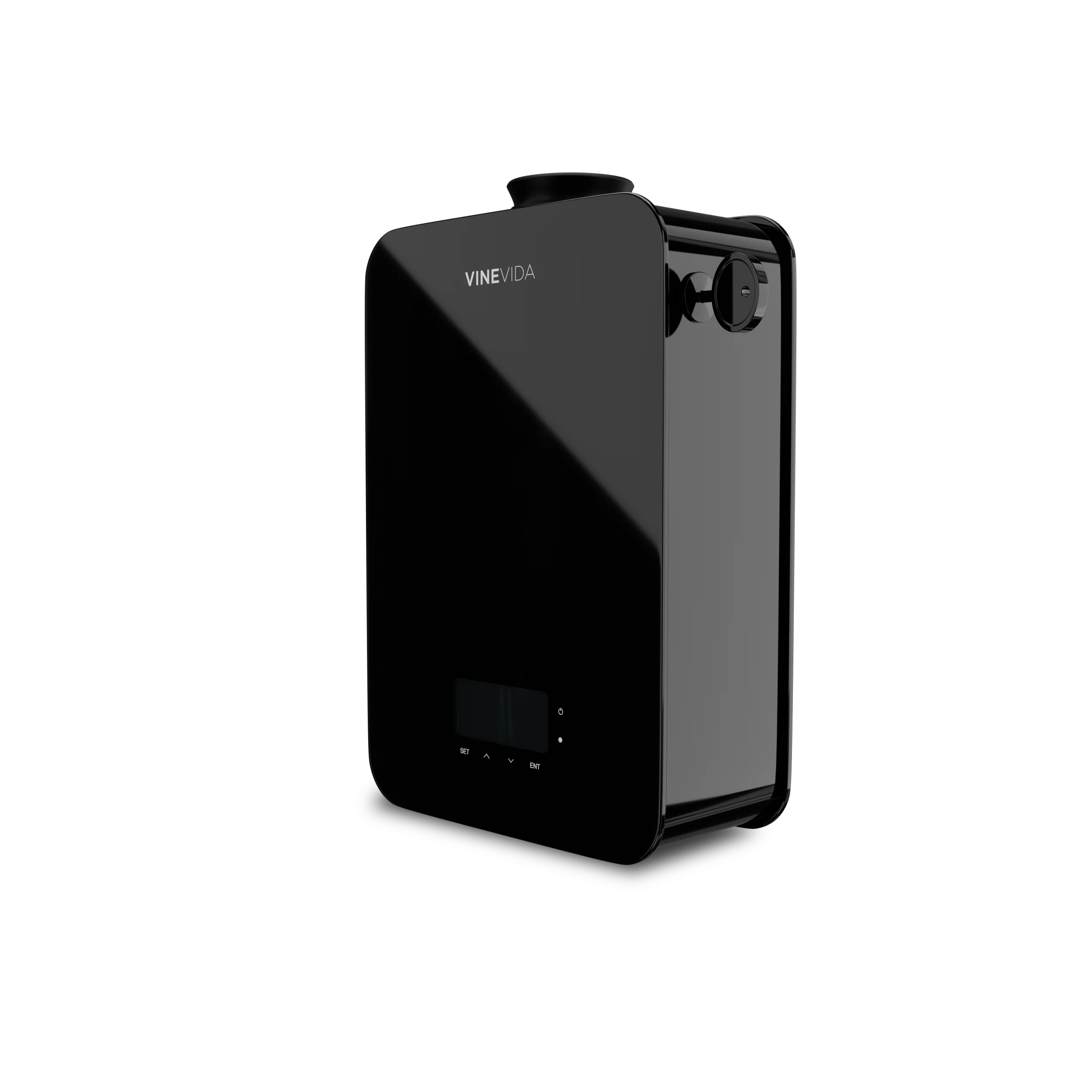

V2 Dynamic BT

Experience advanced aroma diffusion with the V2 Dynamic BT, a smart diffuser designed for large spaces, blending elegance with precise, app-enabled control. Ideal for homes, offices, and professional environments, it can operate standalone or integrate with your HVAC system for seamless fragrance distribution.

Key Features:

Cold Air Diffusion Technology: Atomizes fragrance oils into a fine mist without heat, preserving scent integrity.
Coverage: Scents areas up to 2000 ft² with adjustable intensity across 20 levels.
Bluetooth & App Control: Remotely monitor usage, set up to 5 working periods, and calibrate oil levels via the VINEVIDA app.
Customizable Scheduling: Program start/stop times and daily operation for precise fragrance delivery.
Quiet & Sleek Design: Whisper-quiet operation with contemporary aesthetics.
Safe & Reliable: Vertical placement required; indoor use only. Built-in safety measures ensure long-term reliability.

Item Specifications:

Dimensions: 10.2” x 7.0” x 3.5” (260 x 178 x 89 mm)
Net Weight: 4.1 lbs | 1843 g
Fragrance Container: 6 fl oz / 180 ml
Accessories: Charger, Bottle, Bottle Cap, PU Tube (optional), Manual, Quick Connector (optional), Bracket, Screws, Key

LCD Control & Operation Guide Table:

Grade	Work Time (s)	Stop Time (s)	Consumption (g/h)
G1	15s	300s	0.05
G2	15s	150s	0.10
G3	20s	120s	0.15
G4	20s	85s	0.20
G5	25s	80s	0.25
G6	30s	75s	0.30
G7	30s	60s	0.35
G8	30s	50s	0.40
G9	30s	40s	0.45
G10	30s	33s	0.50
G11	33s	30s	0.55
G12	40s	30s	0.60
G13	50s	30s	0.66
G14	60s	30s	0.71
G15	75s	30s	0.76
G16	80s	25s	0.81
G17	85s	20s	0.86
G18	120s	20s	0.90
G19	150s	15s	0.96
G20	300s	15s	1.01
Custom	5-300s	5-300s	--

LCD Control & Operation:

Power On/Off: Switch activates the screen, shows current time & intensity.
Screen Lock: Locks after 60s inactivity; unlock with SET button for 3s.
Fan Control: Press and hold fan button 3s to toggle ON/OFF.
Working Periods: Supports 5 programmable schedules with start/stop times, intensity, and day selection.

Bluetooth Setup Guide:

Enable Bluetooth & Location Services on your phone.
Download the VINEVIDA App (Apple Store / Google Play).
Connect your diffuser using the default password 8888; change password if desired.
Control device: ON/OFF, intensity, schedules, usage monitoring, and calibration.

Troubleshoot & Machine Cleaning:

Common Issues: No diffusion, low output, oil spilling/overflow – check atomizer, gaskets, vertical placement, or pump.
Cleaning Instructions: Clean before switching fragrances or monthly. Soak container in 99% rubbing alcohol, run for 15 min, air-dry 15 min.

Bring dynamic aroma control, smart scheduling, and quiet elegance to any space with the V2 Dynamic BT, your ultimate solution for precise, large-area scenting.
